498 results
Brand
ATOHMAcoustic EleganceAudesAudio SystemAudioControlAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraB²CRUNCHCT SoundsCelestionCerwin VegaCiareCube AudioD.A.S. AudioDB DriveDS18Dayton AudioDown4SoundESXETONEUPHORIAEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGAS Audio PowerGRSGoldwoodGround ZeroHELIXHertzHiFonicsJL AudioJensenKICKERKICXKartesianLaVoceLii AudioLowtherMATCHMD LabMONACORMTX AudioMUSWAYMicro-PrecisionMorelNemesis AudioObertonP.AudioPHL audioPRV AudioPUNKTKILDEPURIFIPeerlessPioneerPowerBassPrecision DevicesPrideQUANTUMRCFREDCATTRENEGADERadianReckhornRockford FosgateSB AcousticsSB AudienceSEASSICASONYSUPRAVOXScan-SpeakSkar AudioStereo IntegrityTang BandTectonicVIBE AudioVISATONVOLTWVLWavecoraccutonaudisonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
Down4Sound DBz12D2 Subwoofer

Down4Sound DBz12D2

2 x 2 Ω
12″ Subwoofer
fS38.1 Hz
SD591 cm²
QTS0.43
xmax28 mm
SPL1W88 dB
Bl/√RE13.1
Pmax2600 W
Down4Sound DBz12D4 Subwoofer

Down4Sound DBz12D4

2 x 4 Ω
12″ Subwoofer
fS39.7 Hz
SD591 cm²
QTS0.45
xmax28 mm
SPL1W87.1 dB
Bl/√RE12.5
Pmax2600 W
Down4Sound DVX12D2 Subwoofer

Down4Sound DVX12D2

2 x 2 Ω
12″ Subwoofer
fS38.4 Hz
SD434 cm²
QTS0.43
xmax33 mm
SPL1W84.8 dB
Bl/√RE13.5
Pmax3400 W
Down4Sound DVX12D4 Subwoofer

Down4Sound DVX12D4

2 x 4 Ω
12″ Subwoofer
fS39 Hz
SD434 cm²
QTS0.50
xmax33 mm
SPL1W83.4 dB
Bl/√RE11.6
Pmax3400 W
Down4Sound SB12D2 Subwoofer

Down4Sound SB12D2

2 x 2 Ω
12″ Subwoofer
fS29.3 Hz
SD510 cm²
QTS0.48
xmax21 mm
SPL1W85.7 dB
Bl/√RE8.88
Pmax1000 W
Down4Sound SB12D4 Subwoofer

Down4Sound SB12D4

2 x 4 Ω
12″ Subwoofer
fS29.9 Hz
SD510 cm²
QTS0.52
xmax21 mm
SPL1W85.8 dB
Bl/√RE8.21
Pmax1000 W
Down4Sound TCX12D1 Subwoofer

Down4Sound TCX12D1

2 x 1 Ω
12″ Subwoofer
fS36.5 Hz
SD1134 cm²
QTS0.40
xmax39 mm
SPL1W90.2 dB
Bl/√RE16
Pmax5400 W
REDCATT 121NPM Mid Bass

REDCATT 121NPM

8 Ω
12″ Mid Bass
fS50 Hz
SD531 cm²
QTS0.16
xmax7.1 mm
SPL1W98.9 dB
Bl/√RE11.3
Pmax900 W
REDCATT 121XR Subwoofer

REDCATT 121XR

8 Ω
12″ Subwoofer
fS46 Hz
SD531 cm²
QTS0.33
xmax12.7 mm
SPL1W95 dB
Bl/√RE6.76
Pmax1000 W
REDCATT 122NPW Woofer

REDCATT 122NPW

8 Ω
12″ Woofer
fS35 Hz
SD551 cm²
QTS0.17
xmax9.6 mm
SPL1W96.6 dB
Bl/√RE11.5
Pmax1600 W
REDCATT 12NPM Mid Bass

REDCATT 12NPM

8 Ω
12″ Mid Bass
fS49 Hz
SD531 cm²
QTS0.31
xmax9.1 mm
SPL1W95.2 dB
Bl/√RE7.98
Pmax900 W
EUPHORIA EWXB12D4 Subwoofer

EUPHORIA EWXB12D4

2 x 4 Ω
12″ Subwoofer
fS41.4 Hz
SD374 cm²
QTS0.55
xmax16.8 mm
SPL1W83.5 dB
Bl/√RE9.94
Pmax2500 W
EUPHORIA EXFW12NCF Shallow Woofer

EUPHORIA EXFW12NCF

2 x 4 Ω
12″ Shallow Woofer
fS33.8 Hz
SD511 cm²
QTS0.34
xmax10 mm
SPL1W85.6 dB
Bl/√RE11.5
Pmax1200 W
EUPHORIA EXW12CF Subwoofer

EUPHORIA EXW12CF

2 x 2 Ω
12″ Subwoofer
fS37.7 Hz
SD531 cm²
QTS0.46
xmax24 mm
SPL1W85 dB
Bl/√RE11.4
Pmax2500 W
DB Drive X-W12D4 Subwoofer

DB Drive X-W12D4

2 x 4 Ω
12″ Subwoofer
fS30.3 Hz
SD498 cm²
QTS0.53
xmax8.5 mm
SPL1W86.3 dB
Bl/√RE7.88
Pmax600 W
LaVoce WAF123.00-4 Woofer

LaVoce WAF123.00-4

4 Ω
12″ Woofer
fS50 Hz
SD531 cm²
50 - 3000 Hz
QTS0.24
xmax7 mm
SPL1W96 dB
Bl/√RE8.74
Pmax1000 W
LaVoce WAN123.00-16 Woofer

LaVoce WAN123.00-16

16 Ω
12″ Woofer
fS49 Hz
SD531 cm²
50 - 3000 Hz
QTS0.32
xmax6.9 mm
SPL1W95 dB
Bl/√RE7.31
Pmax1000 W
LaVoce WAN123.00-4 Woofer

LaVoce WAN123.00-4

4 Ω
12″ Woofer
fS54 Hz
SD531 cm²
50 - 3000 Hz
QTS0.27
xmax6.9 mm
SPL1W96.1 dB
Bl/√RE8.42
Pmax1000 W
DS18 DIA-T12.2D Subwoofer

DS18 DIA-T12.2D

2 x 2 Ω
12″ Subwoofer
fS32 Hz
SD531 cm²
20 - 200 Hz
QTS0.55
xmax24 mm
SPL1W83.1 dB
Bl/√RE11.7
Pmax2000 W
B² RIOT12 D2 Subwoofer

B² RIOT12 D2

2 x 2 Ω
12″ Subwoofer
fS29.9 Hz
SD528 cm²
10 - 500 Hz
QTS0.55
xmax18 mm
SPL1W84.4 dB
Bl/√RE9.64
Pmax3000 W
B² RAMPAGE12 D2 Subwoofer

B² RAMPAGE12 D2

2 x 2 Ω
12″ Subwoofer
fS33.8 Hz
SD487 cm²
QTS0.47
xmax40 mm
SPL1W82.5 dB
Bl/√RE16.6
Pmax8000 W
B² RAMPAGE12 D1 Subwoofer

B² RAMPAGE12 D1

2 x 1 Ω
12″ Subwoofer
fS34.6 Hz
SD478 cm²
QTS0.51
xmax40 mm
SPL1W82.2 dB
Bl/√RE15.8
Pmax8000 W
B² RAGE12 D2 Subwoofer

B² RAGE12 D2

2 x 2 Ω
12″ Subwoofer
fS26.9 Hz
SD465 cm²
10 - 500 Hz
QTS0.34
xmax20 mm
SPL1W83 dB
Bl/√RE14.7
Pmax6000 W
B² RAGE12 D1 Subwoofer

B² RAGE12 D1

2 x 1 Ω
12″ Subwoofer
fS29.9 Hz
SD465 cm²
10 - 500 Hz
QTS0.38
xmax20 mm
SPL1W83.6 dB
Bl/√RE13.6
Pmax6000 W
B² RAGE12PWR Subwoofer

B² RAGE12PWR

8 Ω
12″ Subwoofer
fS44 Hz
SD552 cm²
40 - 4000 Hz
QTS0.35
xmax7.3 mm
SPL1W93.5 dB
Bl/√RE7.84
Pmax1000 W
HiFonics ZXT12D2 Subwoofer

HiFonics ZXT12D2

2 x 2 Ω
12″ Subwoofer
fS39 Hz
SD472 cm²
QTS0.58
xmax23 mm
SPL1W83.8 dB
Bl/√RE10.9
Pmax6000 W
HiFonics ZXS12D2 Subwoofer

HiFonics ZXS12D2

2 x 2 Ω
12″ Subwoofer
fS28.5 Hz
SD510 cm²
QTS0.48
xmax14 mm
SPL1W85.8 dB
Bl/√RE8.05
Pmax1000 W
HiFonics ZSPL12D2 Subwoofer

HiFonics ZSPL12D2

2 x 2 Ω
12″ Subwoofer
fS34 Hz
SD512 cm²
QTS0.53
xmax13 mm
SPL1W86.6 dB
Bl/√RE8.17
Pmax1800 W
HiFonics ZRX12D2 Subwoofer

HiFonics ZRX12D2

2 x 2 Ω
12″ Subwoofer
fS33.4 Hz
SD495 cm²
QTS0.54
xmax12.5 mm
SPL1W84.4 dB
Bl/√RE9.57
Pmax2000 W
HiFonics CX12D2 Subwoofer

HiFonics CX12D2

2 x 2 Ω
12″ Subwoofer
fS36 Hz
SD510 cm²
QTS0.34
xmax17.5 mm
SPL1W87 dB
Bl/√RE13.4
Pmax8000 W
HiFonics HEW12D4 Subwoofer

HiFonics HEW12D4

2 x 4 Ω
12″ Subwoofer
fS34 Hz
SD530 cm²
QTS0.50
xmax20 mm
SPL1W85.2 dB
Bl/√RE10.1
Pmax1600 W
audison AV 12 D4 II Subwoofer

audison AV 12 D4 II

2 x 4 Ω
12″ Subwoofer
fS23 Hz
SD539 cm²
25 - 400 Hz
QTS0.50
xmax16.8 mm
SPL1W84.1 dB
Bl/√RE9.09
Pmax1100 W
audison AV 12 D2 II Subwoofer

audison AV 12 D2 II

2 x 2 Ω
12″ Subwoofer
fS23 Hz
SD539 cm²
25 - 400 Hz
QTS0.50
xmax16.8 mm
SPL1W83.8 dB
Bl/√RE9.58
Pmax1100 W

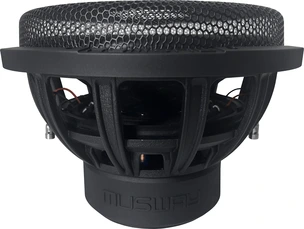

MUSWAY MG12 Subwoofer

MUSWAY MG12

2 x 2 Ω
12″ Subwoofer
fS30 Hz
SD531 cm²
QTS0.40
xmax14 mm
SPL1W87.5 dB
Bl/√RE8.43
Pmax1400 W
AudioControl EPICX12 D4 Subwoofer

AudioControl EPICX12 D4

2 x 4 Ω
12″ Subwoofer
fS30.3 Hz
SD515 cm²
QTS0.59
xmax8.5 mm
SPL1W86.3 dB
Bl/√RE8.12
Pmax750 W
AudioControl EPICX12 D2 Subwoofer

AudioControl EPICX12 D2

2 x 2 Ω
12″ Subwoofer
fS29.9 Hz
SD515 cm²
QTS0.55
xmax8.5 mm
SPL1W86.7 dB
Bl/√RE8.35
Pmax750 W
VIBE Audio BD12D2-V4 Subwoofer

VIBE Audio BD12D2-V4

2 x 2 Ω
12″ Subwoofer
fS32.1 Hz
SD453 cm²
25 - 850 Hz
QTS0.60
xmax16 mm
SPL1W80.5 dB
Bl/√RE11.3
Pmax3000 W
Audio System X 12 EVO Subwoofer

Audio System X 12 EVO

2 x 4 Ω
12″ Subwoofer
fS27.9 Hz
SD490 cm²
25 - 100 Hz
QTS0.37
xmax15 mm
SPL1W89.4 dB
Bl/√RE10.8
Pmax1500 W
Audio System R 12 EVO Subwoofer

Audio System R 12 EVO

2 x 4 Ω
12″ Subwoofer
fS34.9 Hz
SD510 cm²
30 - 100 Hz
QTS0.53
xmax13 mm
SPL1W86.1 dB
Bl/√RE9.67
Pmax1000 W
