72 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSEASSICASUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
Beyma 10MC500Nd Subwoofer

Beyma 10MC500Nd

8 Ω
10″ Subwoofer
fS58 Hz
SD350 cm²
60 - 3500 Hz
QTS0.25
xmax8 mm
SPL1W94.7 dB
Bl/√RE7.97
Pmax1000 W
B&C Speaker 10FL64 Woofer

B&C Speaker 10FL64

8 Ω
10″ Woofer
fS63 Hz
SD320 cm²
65 - 2500 Hz
QTS0.32
xmax5 mm
SPL1W94.1 dB
Bl/√RE6.76
Pmax500 W
Eminence DELTA-10A-2 Woofer

Eminence DELTA-10A-2

8 Ω
10″ Woofer
fS69.7 Hz
SD345 cm²
50 - 3700 Hz
QTS0.44
xmax6.4 mm
SPL1W94.6 dB
Bl/√RE5.19
Pmax850 W
PRV Audio 10W1000-NDY Woofer

PRV Audio 10W1000-NDY

8 Ω
10″ Woofer
fS62.1 Hz
SD380 cm²
55 - 5500 Hz
QTS0.40
xmax6.5 mm
SPL1W94.9 dB
Bl/√RE5.64
Pmax1000 W
PRV Audio 10MR650A Mid-range

PRV Audio 10MR650A

8 Ω
10″ Mid-range
fS64.7 Hz
SD398 cm²
80 - 6500 Hz
QTS0.47
xmax5.7 mm
SPL1W95.7 dB
Bl/√RE5.18
Pmax650 W
PRV Audio 10MB1000FT Mid Bass

PRV Audio 10MB1000FT

8 Ω
10″ Mid Bass
fS75 Hz
SD380 cm²
75 - 7000 Hz
QTS0.32
xmax5.9 mm
SPL1W99 dB
Bl/√RE6.29
Pmax1000 W
PHL audio 3020 Woofer

PHL audio 3020

8 Ω
10″ Woofer
fS60 Hz
SD356 cm²
50 - 4000 Hz
QTS0.38
xmax5 mm
SPL1W94.1 dB
Bl/√RE5.56
Pmax400 W
B&C Speaker 10NDL88 Woofer

B&C Speaker 10NDL88

8 Ω
10″ Woofer
fS61 Hz
SD320 cm²
61 - 2500 Hz
QTS0.25
xmax8.1 mm
SPL1W93.6 dB
Bl/√RE8.86
Pmax1400 W
B&C Speaker 10CLA76 Woofer

B&C Speaker 10CLA76

8 Ω
10″ Woofer
fS71 Hz
SD320 cm²
70 - 2500 Hz
QTS0.29
xmax6.5 mm
SPL1W94.3 dB
Bl/√RE8.13
Pmax800 W
B&C Speaker 10CL64 Woofer

B&C Speaker 10CL64

8 Ω
10″ Woofer
fS63 Hz
SD320 cm²
65 - 4000 Hz
QTS0.31
xmax5.2 mm
SPL1W93.7 dB
Bl/√RE7.08
Pmax500 W
RCF MB10Y308 Woofer

RCF MB10Y308

8 Ω
10″ Woofer
fS60 Hz
SD400 cm²
55 - 3500 Hz
QTS0.23
xmax5 mm
SPL1W97.2 dB
Bl/√RE7.82
Pmax1000 W
RCF MB10G253 Woofer

RCF MB10G253

8 Ω
10″ Woofer
fS76 Hz
SD400 cm²
55 - 3000 Hz
QTS0.34
xmax7 mm
SPL1W96.5 dB
Bl/√RE6.53
Pmax600 W
Beyma 10MCB700 Mid Bass

Beyma 10MCB700

8 Ω
10″ Mid Bass
fS75 Hz
SD350 cm²
80 - 4000 Hz
QTS0.33
xmax7 mm
SPL1W94 dB
Bl/√RE8.73
Pmax1400 W
Eighteen Sound 10MB777 Woofer

Eighteen Sound 10MB777

8 Ω
10″ Woofer
fS58 Hz
SD350 cm²
55 - 4500 Hz
QTS0.22
xmax6.5 mm
SPL1W95.8 dB
Bl/√RE7.79
Pmax700 W
Discontinued

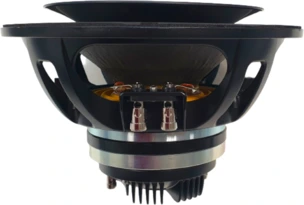

Eighteen Sound 10NCX750H Coaxial

Eighteen Sound 10NCX750H

8 Ω
10″ Coaxial
fS65 Hz
SD346 cm²
60 - 15000 Hz
QTS0.25
xmax5.5 mm
SPL1W95.2 dB
Bl/√RE8.6
Pmax700 W
FaitalPRO 10HX240 8Ω Coaxial

FaitalPRO 10HX240 8Ω

8 Ω
10″ Coaxial
fS65 Hz
SD347 cm²
65 - 20000 Hz
QTS0.28
xmax7.4 mm
SPL1W96.7 dB
Bl/√RE6.73
Pmax500 W
FaitalPRO 10FE400 8Ω Woofer

FaitalPRO 10FE400 8Ω

8 Ω
10″ Woofer
fS60 Hz
SD362 cm²
60 - 4500 Hz
QTS0.47
xmax5.4 mm
SPL1W93.1 dB
Bl/√RE5.14
Pmax400 W
LaVoce CSF102.50K Coaxial

LaVoce CSF102.50K

8 Ω
10″ Coaxial
fS65 Hz
SD350 cm²
65 - 20000 Hz
QTS0.45
xmax6.3 mm
SPL1W94 dB
Bl/√RE5.36
Pmax600 W
SICA 10 K 4 PL Woofer

SICA 10 K 4 PL

8 Ω
10″ Woofer
fS58.5 Hz
SD346 cm²
55 - 4000 Hz
QTS0.25
xmax5 mm
SPL1W94.5 dB
Bl/√RE8.75
Pmax1600 W
SICA 10 Cx 3 PL Coaxial

SICA 10 Cx 3 PL

8 Ω
10″ Coaxial
fS59 Hz
SD346 cm²
60 - 20000 Hz
QTS0.29
xmax6 mm
SPL1W95.1 dB
Bl/√RE6.42
Pmax800 W
RCF MB10N305 Woofer

RCF MB10N305

8 Ω
10″ Woofer
fS60 Hz
SD400 cm²
55 - 3500 Hz
QTS0.23
xmax5 mm
SPL1W97.2 dB
Bl/√RE7.82
Pmax1000 W
RCF MB10G350 Woofer

RCF MB10G350

8 Ω
10″ Woofer
fS58 Hz
SD400 cm²
45 - 3000 Hz
QTS0.31
xmax7 mm
SPL1W95.7 dB
Bl/√RE6.51
Pmax600 W
RCF MB10G251 Woofer

RCF MB10G251

8 Ω
10″ Woofer
fS76 Hz
SD400 cm²
55 - 3000 Hz
QTS0.34
xmax7 mm
SPL1W97.2 dB
Bl/√RE6.53
Pmax600 W
Discontinued
RCF CX10N251 Coaxial

RCF CX10N251

8 Ω
10″ Coaxial
fS72 Hz
SD400 cm²
65 - 20000 Hz
QTS0.23
xmax5 mm
SPL1W98.9 dB
Bl/√RE7.67
Pmax600 W
Discontinued
RCF CX10G251 Coaxial

RCF CX10G251

8 Ω
10″ Coaxial
fS72 Hz
SD400 cm²
65 - 20000 Hz
QTS0.28
xmax5 mm
SPL1W99.4 dB
Bl/√RE6.23
Pmax600 W
Discontinued

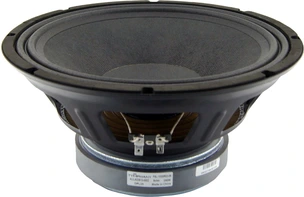

Peerless FSL-1020R02-08 Woofer

Peerless FSL-1020R02-08

8 Ω
10″ Woofer
fS65 Hz
SD373 cm²
50 - 2000 Hz
QTS0.36
xmax5.1 mm
SPL1W95.6 dB
Bl/√RE5.65
Pmax334 W
Discontinued
PRV Audio 10MR1003FT Mid-range

PRV Audio 10MR1003FT

8 Ω
10″ Mid-range
fS60.9 Hz
SD405 cm²
65 - 6000 Hz
QTS0.31
xmax5.3 mm
SPL1W96.1 dB
Bl/√RE7.08
Pmax1000 W
Discontinued
PRV Audio 10MB400 Mid Bass

PRV Audio 10MB400

8 Ω
10″ Mid Bass
fS64.2 Hz
SD398 cm²
65 - 4000 Hz
QTS0.50
xmax5.3 mm
SPL1W94.6 dB
Bl/√RE5.01
Pmax400 W
Oberton 10NMB500 Mid Bass

Oberton 10NMB500

8 Ω
10″ Mid Bass
fS68.2 Hz
SD317 cm²
65 - 3000 Hz
QTS0.41
xmax8.3 mm
SPL1W93.2 dB
Bl/√RE6.52
Pmax1000 W
Oberton 10NCX Coaxial

Oberton 10NCX

8 Ω
10″ Coaxial
fS79.3 Hz
SD317 cm²
75 - 15000 Hz
QTS0.29
xmax5.3 mm
SPL1W97 dB
Bl/√RE6.85
Pmax700 W
Oberton 10MB500 Mid Bass

Oberton 10MB500

8 Ω
10″ Mid Bass
fS65.9 Hz
SD317 cm²
65 - 3000 Hz
QTS0.31
xmax8.3 mm
SPL1W94.9 dB
Bl/√RE7.04
Pmax1000 W
Oberton 10MB300 Mid-range

Oberton 10MB300

8 Ω
10″ Mid-range
fS64.7 Hz
SD317 cm²
80 - 2500 Hz
QTS0.24
xmax5.3 mm
SPL1W95.4 dB
Bl/√RE7.86
Pmax800 W
Oberton 10M300 Mid-range

Oberton 10M300

8 Ω
10″ Mid-range
fS59.8 Hz
SD317 cm²
75 - 3500 Hz
QTS0.25
xmax5.3 mm
SPL1W96.8 dB
Bl/√RE7.78
Pmax800 W
Discontinued
LaVoce WSN102.00 Woofer

LaVoce WSN102.00

8 Ω
10″ Woofer
fS65 Hz
SD356 cm²
60 - 4000 Hz
QTS0.42
xmax5.3 mm
SPL1W93.5 dB
Bl/√RE5.33
Pmax300 W
LaVoce WSF102.50 Woofer

LaVoce WSF102.50

8 Ω
10″ Woofer
fS64 Hz
SD350 cm²
60 - 2000 Hz
QTS0.31
xmax4.8 mm
SPL1W95.4 dB
Bl/√RE6.36
Pmax500 W
LaVoce WSF102.00 Woofer

LaVoce WSF102.00

8 Ω
10″ Woofer
fS65 Hz
SD350 cm²
60 - 4000 Hz
QTS0.45
xmax5.2 mm
SPL1W94.4 dB
Bl/√RE5.1
Pmax350 W
LaVoce WAN103.01 Woofer

LaVoce WAN103.01

8 Ω
10″ Woofer
fS70 Hz
SD350 cm²
70 - 3500 Hz
QTS0.22
xmax5 mm
SPL1W96.7 dB
Bl/√RE8.77
Pmax900 W
LaVoce WAN102.50 Woofer

LaVoce WAN102.50

8 Ω
10″ Woofer
fS78 Hz
SD350 cm²
80 - 4000 Hz
QTS0.35
xmax5.1 mm
SPL1W96 dB
Bl/√RE6.47
Pmax600 W
Discontinued

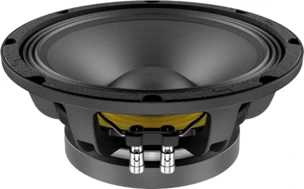

LaVoce WAF102.52 Woofer

LaVoce WAF102.52

8 Ω
10″ Woofer
fS66 Hz
SD346 cm²
60 - 4000 Hz
QTS0.41
xmax9.1 mm
SPL1W93.3 dB
Bl/√RE6.28
Pmax700 W
