4417 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSEASSICASUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg

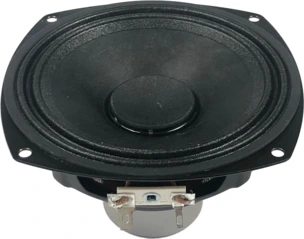

Peerless NSM-0412R00-08 Woofer

Peerless NSM-0412R00-08

8 Ω
4.5″ Woofer
fS110 Hz
SD65 cm²
100 - 5000 Hz
QTS0.27
xmax5.6 mm
SPL1W90.1 dB
Bl/√RE3.65
Pmax220 W

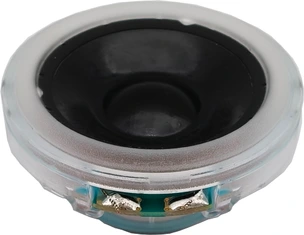

Peerless HVS-40N15PG01-04 Full-range

Peerless HVS-40N15PG01-04

4 Ω
1.5″ Full-range
fS220 Hz
SD8.6 cm²
200 - 40000 Hz
QTS1.00
xmax1.6 mm
SPL1W81.5 dB
Bl/√RE0.93
Pmax8 W
KICKER 52CVT124 Subwoofer

KICKER 52CVT124

4 Ω
12″ Subwoofer
fS36.4 Hz
SD531 cm²
QTS0.83
xmax13 mm
SPL1W86.4 dB
Bl/√RE6.73
Pmax900 W
KICKER 52CVT122 Subwoofer

KICKER 52CVT122

2 Ω
12″ Subwoofer
fS34.8 Hz
SD531 cm²
QTS0.74
xmax13 mm
SPL1W86.4 dB
Bl/√RE7.23
Pmax900 W
KICKER 52CVT104 Subwoofer

KICKER 52CVT104

4 Ω
10″ Subwoofer
fS38.6 Hz
SD366 cm²
QTS0.69
xmax13 mm
SPL1W85.1 dB
Bl/√RE6.8
Pmax750 W
KICKER 52CVT102 Subwoofer

KICKER 52CVT102

2 Ω
10″ Subwoofer
fS37.8 Hz
SD366 cm²
QTS0.61
xmax13 mm
SPL1W85.3 dB
Bl/√RE7.41
Pmax750 W
KICKER 52CVR124 Subwoofer

KICKER 52CVR124

2 x 4 Ω
12″ Subwoofer
fS28.5 Hz
SD531 cm²
QTS0.65
xmax16.5 mm
SPL1W85.9 dB
Bl/√RE6.86
Pmax900 W
KICKER 52CVR122 Subwoofer

KICKER 52CVR122

2 x 2 Ω
12″ Subwoofer
fS27 Hz
SD531 cm²
QTS0.57
xmax16.5 mm
SPL1W85.9 dB
Bl/√RE7.35
Pmax900 W
KICKER 52CVR104 Subwoofer

KICKER 52CVR104

2 x 4 Ω
10″ Subwoofer
fS32.7 Hz
SD356 cm²
QTS0.69
xmax16.5 mm
SPL1W83.9 dB
Bl/√RE6.41
Pmax750 W
KICKER 52CVR102 Subwoofer

KICKER 52CVR102

2 x 2 Ω
10″ Subwoofer
fS31.1 Hz
SD356 cm²
QTS0.60
SPL1W83.9 dB
Bl/√RE7.07
Pmax750 W
KICKER 51CWQ154 Subwoofer

KICKER 51CWQ154

2 x 4 Ω
15″ Subwoofer
fS32.4 Hz
SD814 cm²
18 - 100 Hz
QTS0.54
xmax23.7 mm
SPL1W87.8 dB
Bl/√RE11.9
Pmax2400 W
KICKER 51CWQ152 Subwoofer

KICKER 51CWQ152

2 x 2 Ω
15″ Subwoofer
fS31.2 Hz
SD814 cm²
18 - 100 Hz
QTS0.49
xmax23.7 mm
SPL1W87.9 dB
Bl/√RE12.8
Pmax2400 W
KICKER 51CWQ104 Subwoofer

KICKER 51CWQ104

2 x 4 Ω
10″ Subwoofer
fS37.7 Hz
SD346 cm²
24 - 100 Hz
QTS0.48
xmax19.7 mm
SPL1W84.6 dB
Bl/√RE9.65
Pmax1600 W
KICKER 51CWQ102 Subwoofer

KICKER 51CWQ102

2 x 2 Ω
10″ Subwoofer
fS35.7 Hz
SD346 cm²
24 - 100 Hz
QTS0.42
xmax19.7 mm
SPL1W84.6 dB
Bl/√RE10.4
Pmax1600 W
KICKER 50CWCS84 Subwoofer

KICKER 50CWCS84

4 Ω
8″ Subwoofer
fS42.8 Hz
SD201 cm²
30 - 500 Hz
QTS0.73
xmax11.1 mm
SPL1W84 dB
Bl/√RE4.52
Pmax400 W
KICKER 50CWCS154 Subwoofer

KICKER 50CWCS154

4 Ω
15″ Subwoofer
fS26.8 Hz
SD830 cm²
25 - 500 Hz
QTS0.59
xmax16.1 mm
SPL1W88.8 dB
Bl/√RE7.81
Pmax900 W
KICKER 50CWCS124 Subwoofer

KICKER 50CWCS124

4 Ω
12″ Subwoofer
fS31.3 Hz
SD531 cm²
27 - 500 Hz
QTS0.72
xmax13.3 mm
SPL1W87.4 dB
Bl/√RE5.72
Pmax600 W
KICKER 50CWCS104 Subwoofer

KICKER 50CWCS104

4 Ω
10″ Subwoofer
fS31 Hz
SD360 cm²
30 - 500 Hz
QTS0.59
xmax13.2 mm
SPL1W85.9 dB
Bl/√RE5.44
Pmax500 W
KICKER 50CWCD154 Subwoofer

KICKER 50CWCD154

2 x 4 Ω
15″ Subwoofer
fS28.5 Hz
SD830 cm²
25 - 500 Hz
QTS0.73
xmax16.1 mm
SPL1W88.4 dB
Bl/√RE7.14
Pmax900 W
KICKER 50CWCD124 Subwoofer

KICKER 50CWCD124

2 x 4 Ω
12″ Subwoofer
fS32.5 Hz
SD531 cm²
27 - 500 Hz
QTS0.84
xmax13.3 mm
SPL1W87.1 dB
Bl/√RE5.27
Pmax600 W
KICKER 50CWCD104 Subwoofer

KICKER 50CWCD104

2 x 4 Ω
10″ Subwoofer
fS34 Hz
SD360 cm²
30 - 500 Hz
QTS0.70
xmax13.2 mm
SPL1W85.7 dB
Bl/√RE5.17
Pmax500 W
KICKER 49L7X182 Subwoofer

KICKER 49L7X182

2 x 2 Ω
18 x 18″ Subwoofer
fS28.9 Hz
SD1406 cm²
18 - 100 Hz
QTS0.63
xmax31.3 mm
SPL1W88.6 dB
Bl/√RE13.9
Pmax2000 W
KICKER 49L7X181 Subwoofer

KICKER 49L7X181

2 x 1 Ω
18 x 18″ Subwoofer
fS26.9 Hz
SD1406 cm²
18 - 100 Hz
QTS0.56
xmax31.3 mm
SPL1W88.5 dB
Bl/√RE15
Pmax2000 W
KICKER 49L7X102 Subwoofer

KICKER 49L7X102

2 x 2 Ω
10 x 10″ Subwoofer
fS39.6 Hz
SD380 cm²
25 - 100 Hz
QTS0.47
xmax31.3 mm
SPL1W82.9 dB
Bl/√RE13.8
Pmax2000 W
KICKER 49L7X101 Subwoofer

KICKER 49L7X101

2 x 1 Ω
10 x 10″ Subwoofer
fS43.1 Hz
SD380 cm²
25 - 100 Hz
QTS0.47
xmax31.3 mm
SPL1W83.3 dB
Bl/√RE14.9
Pmax2000 W
KICKER 43C84 Subwoofer

KICKER 43C84

4 Ω
8″ Subwoofer
fS39.8 Hz
SD211 cm²
30 - 500 Hz
QTS0.57
xmax10.8 mm
SPL1W85 dB
Bl/√RE4.98
Pmax200 W
Fostex W160A-HR Woofer

Fostex W160A-HR

8 Ω
6.5″ Woofer
fS42.9 Hz
SD117 cm²
43 - 7000 Hz
QTS0.31
SPL1W87 dB
Bl/√RE3.82
Pmax100 W
Fostex FE83NV2 Full-range

Fostex FE83NV2

8 Ω
3″ Full-range
fS150 Hz
SD28.2 cm²
150 - 22000 Hz
QTS0.78
SPL1W87.1 dB
Bl/√RE1.2
Pmax15 W
Fostex FE206NV2 Full-range

Fostex FE206NV2

8 Ω
8″ Full-range
fS44.7 Hz
SD210 cm²
45 - 18000 Hz
QTS0.26
SPL1W95.5 dB
Bl/√RE3.99
Pmax90 W
Fostex FE203Σ-RE Full-range

Fostex FE203Σ-RE

8 Ω
8″ Full-range
fS54 Hz
SD206 cm²
54 - 18000 Hz
QTS0.23
SPL1W96.5 dB
Bl/√RE4.51
Pmax18 W
Fostex FE166NV2 Full-range

Fostex FE166NV2

8 Ω
6.5″ Full-range
fS49.6 Hz
SD132 cm²
50 - 20000 Hz
QTS0.27
SPL1W93 dB
Bl/√RE2.76
Pmax65 W
Fostex FE126NV2 Full-range

Fostex FE126NV2

8 Ω
4.5″ Full-range
fS79.1 Hz
SD65.4 cm²
79 - 20000 Hz
QTS0.34
SPL1W92.2 dB
Bl/√RE1.99
Pmax45 W
Fostex FE108SS-HP Full-range

Fostex FE108SS-HP

8 Ω
4″ Full-range
fS81 Hz
SD50.1 cm²
81 - 28000 Hz
QTS0.39
SPL1W89.7 dB
Bl/√RE1.95
Pmax30 W
Fostex FE108NS Full-range

Fostex FE108NS

8 Ω
4″ Full-range
fS75 Hz
SD47.2 cm²
75 - 20000 Hz
QTS0.32
SPL1W90.7 dB
Bl/√RE1.87
Pmax30 W
Fostex FE108-Sol 2023 Full-range

Fostex FE108-Sol 2023

8 Ω
4″ Full-range
fS76.3 Hz
SD50 cm²
70 - 35000 Hz
QTS0.34
xmax0.9 mm
SPL1W90.7 dB
Bl/√RE1.93
Pmax10 W
Fostex FE103NV2 Full-range

Fostex FE103NV2

8 Ω
4″ Full-range
fS91.8 Hz
SD50.3 cm²
92 - 22000 Hz
QTS0.46
SPL1W90.1 dB
Bl/√RE1.69
Pmax15 W
Fostex C045A8 Full-range

Fostex C045A8

8 Ω
2″ Full-range
fS320 Hz
SD10.5 cm²
320 - 40000 Hz
QTS1.78
SPL1W84.6 dB
Bl/√RE0.73
Pmax10 W
Celestion Truvox 1225 Low frequency

Celestion Truvox 1225

8 Ω
12″ Low frequency
fS60.3 Hz
SD531 cm²
QTS0.62
xmax4.8 mm
SPL1W94 dB
Bl/√RE5.35
Pmax600 W
Celestion Truvox 0820 Low frequency

Celestion Truvox 0820

8 Ω
8″ Low frequency
fS74.1 Hz
SD227 cm²
70 - 6000 Hz
QTS0.39
xmax5 mm
SPL1W93.7 dB
Bl/√RE4.68
Pmax500 W
Celestion TSQ2460 Low frequency

Celestion TSQ2460

4 Ω
24″ Low frequency
fS29 Hz
SD2239 cm²
20 - 200 Hz
QTS0.30
xmax18.8 mm
SPL1W96.3 dB
Bl/√RE17.9
Pmax4800 W
